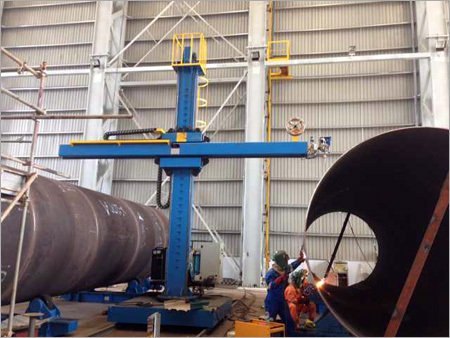

Mig Welding Cross Manipulator

Mig Welding Cross Manipulator
Mig Welding Cross Manipulator
Product Code : LH3040
Brand Name : Wuxi zhonglian
Product Description
With Mig Welding Cross Manipulator extend your lift and reach a high level welding job. They come in several options such as fixed with rotation, travel with rotation and fixed. It is designed to weld hard-to-reach joints, like the outside and inside seams of tanks, or transverse and longitudinal seams of big tanks. The Mig Welding Cross Manipulator offers excellent control for the welding process. It is designed to meet perfect functionality, reliability and productiveness. We also meet special need and application of clients.

Key Factors:
  • Frequency Conversion Speed Control
  • Precise & Stable Performance
  • Facilitate Welding Operation



Main Technical Parameters



Model

LH1010

LH2020

LH3030

LH4040

LH5050

LH6060

LH7070

LH8080

Effective vertical lifting stroke of boom (mm)

1000

2000

3000

4000

5000

6000

7000

8000

Effective horizontal retracting stroke of boom (mm)

1000

2000

3000

4000

5000

6000

7000

8000

Boom lifting speed(mm/min)

420

1000

2000

Boom retracting speed (mm/min)

120-1200

Column rotation angle

Stationary or rotatable

Column rotation way

Manual or Motorized (0.12rpm)

Trolley traveling way

Stationary or Electric move(2000mm/min)
